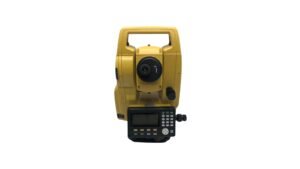

Topcon GTS-1002N
Improved EDM,Measuring Faster,More Powerfull
Product Features
Total Station Topcon GTS-1002N is a survey tool used in mapping and building construction or measuring mining land, etc. Topcon GTS-1002N is a total station that includes a theodolite and components for measuring electronic distance or can be called an electronic distance meter (EDM), already has a laser or reflectorless feature.
- Fast & Accurate & Powerful Measuring Distance Feature
- -20 ~ +60°C Working Temperature
- Reflectorless,Reflector,prism three kinds of measure model
- Strong shell. IP66
- One battery operation up to 25 hours
Topcon GTS-1002N
Fast and Powerful Reflectorless EDM & Fast and accurate pinpointing with phase shift technology
Detail Parameters
more detail about Topcon GTS-1002N parameters
TELESCOPE
Length
150mm
Objective Lens
Dia. 45mm (EDM50mm)
Magnification
30x
Field of View
1°30
Resolving Power
3.0”
Minimum Focus
1.3m
DISTANCE MEASUREMENT
Mini Prism
900m
1 Prism
2000m
3 Prisms
2700m
Slight haze with visibility about 20km moderate sunlight with light heat shimme
Accuracy
±(2mm+2ppm xD) m.s.e
ANGLE MEASUREMENT
Accuracy
2”
Method
Absolute Reading
Detecting System (H)
Dual
Detecting System (V)
Single
Minimum Reading
5”/1”
Tilt Correction
Single Axis
Durability
Protection against dust & water
IP66
Operating Temperature
–20°C to +60°C
Operation Time
25 hours
Input Voltage
AC230V
Charging Time
1.8 hours (+10°C to +40°C)
